Description

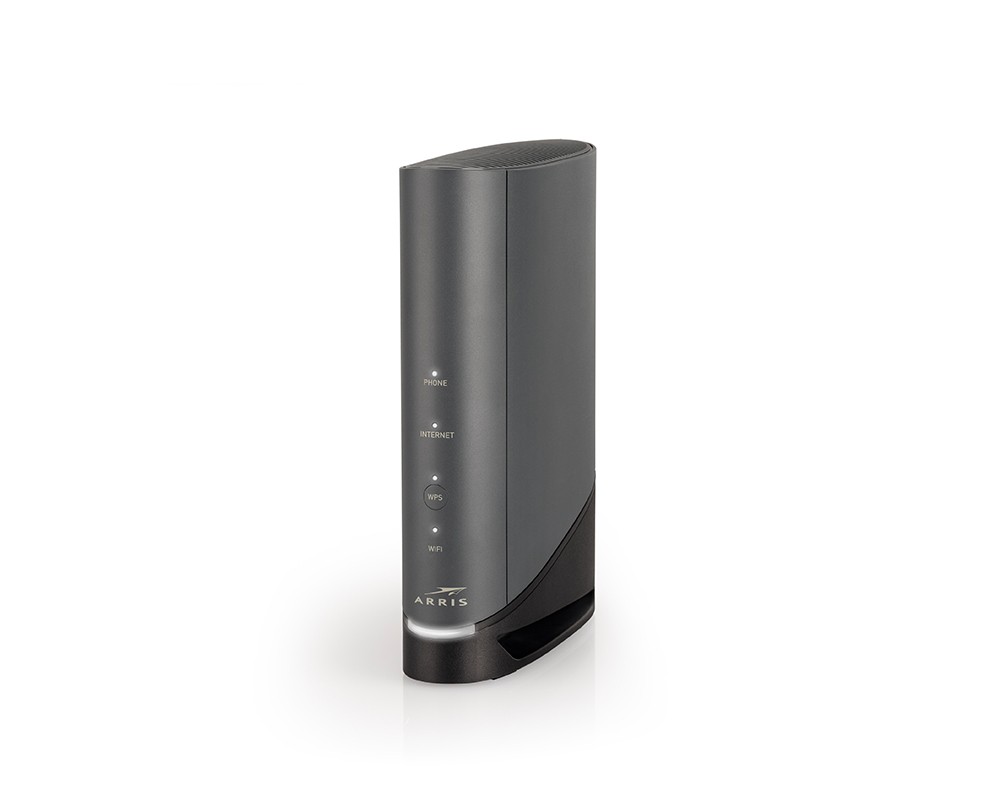

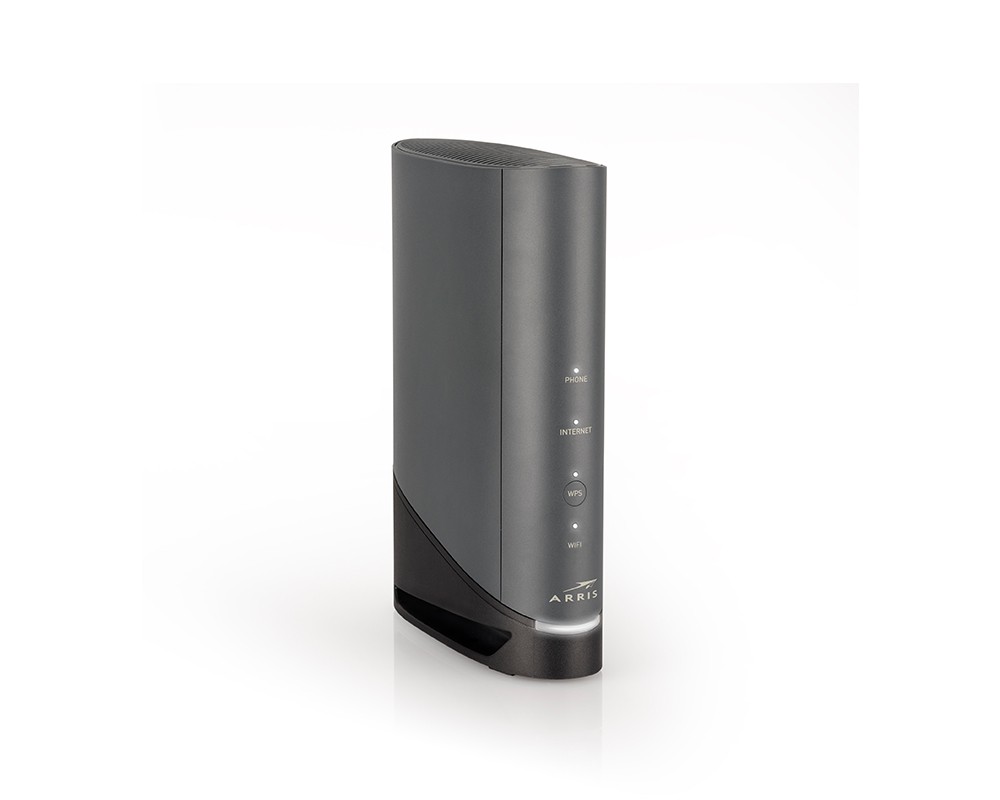

The Touchstone TG3442 is a DOCSIS 3.1 home telephony gateway supporting 2×192 MHz OFDM in the downstream and 2x96MHz OFDMA in the upstream along with 32×8 channel bonding for up to 2.5 Gbps of broadband data. It combines two FXS ports of carrier-grade VoIP, a 4-port gigabit router and a dual band 802.11n and 802.11ac Wave2 wireless access point with battery back-up into a single integrated device.
The TG3442 serves as the hub of service delivery in the subscriber’s home; providing high-speed data, voice and IP video to wired and wireless connected devices. The device is optimized for providing Gigabit data services over DOCSIS 3.1 WAN.

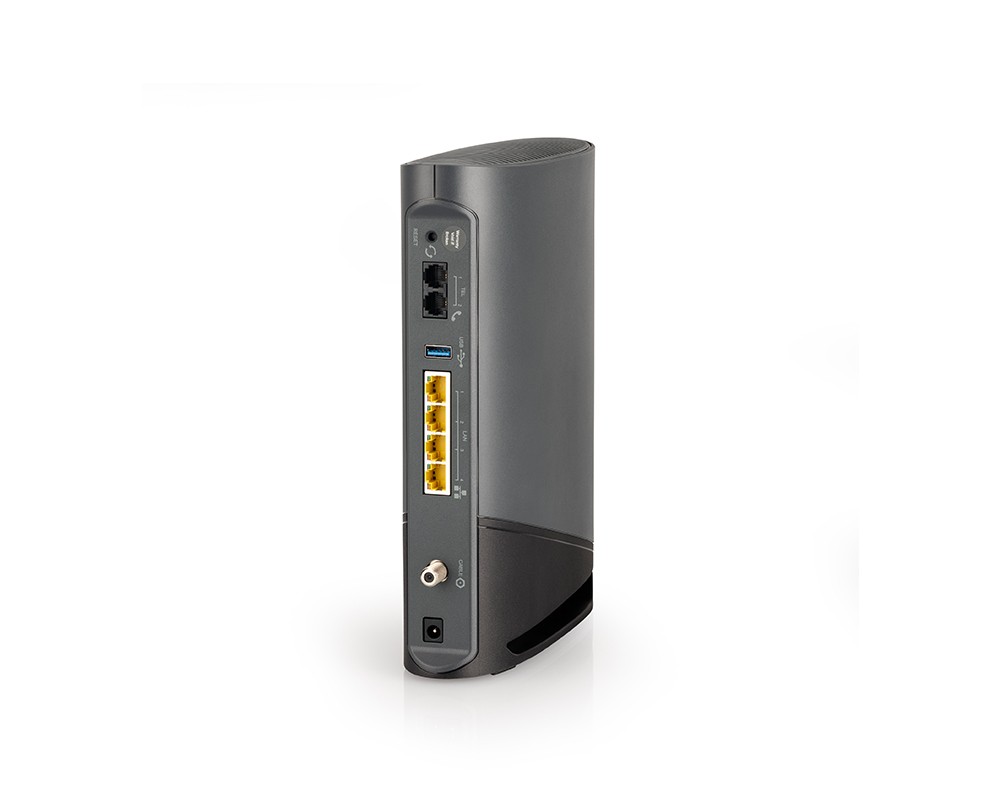

Interfaces
- RF Interface: ‘F’ type connector
- Data Interfaces: 4 x 10/100/1000 Base-T Ethernet (RJ-45 connector)
- Voice Interface: 2 lines; RJ-11 (“Line 1″), RJ-11 (“Line 2”)
- USB Interface; USB 3.1 Gen1, Type A
Wi-Fi
- 802.11a/b/g/n/ac Wave2
- 2.4GHz and 5GHz concurrent operation
- Dual Band Concurrent 4×4:4@5GHz and 3 x 3:3@2.4GHz Antennas
- WPATM and WPA2TM Personal and Enterprise, 64/ 128 bit WEP, and MAC authentication wireless security options
- WMM® QOS, and WMM Power Save
Software
- RDK-B, Dual Stack IPv4/IPv6 Home Router, Static and Dynamic IP, DHCP, NAT, L2TP, VLAN’s and RIP
- PacketCable 1.5, 2.0
Physical
- Dimensions (H x W x D) : 230 x 57 x 195 mm- excluding F-connector
- Weight: 2.5 lbs
- Input Voltage: 12V DC, external PSU
- External BBU Capacity: 4 cell 2.6AH Lithium-ion for 8 hours operation
