Description
Well suited for use in high-density fiber environments, multi-fiber MPO cables eliminate the expense of running individual patch cords for each service turn-up. Widely used in Data Center interconnects, MPO cables are spreading into telecom access applications such as FTTH, FTTA or C-RAN. The use of an MPO switch is the best way to accurately and quickly characterize individual fibers of an MPO cables with an OTDR.
Benefits
- All-in-one, integrated solution for multi-fiber MPO cable characterization, certification and troubleshooting
- Replaces multi-fibers, fan-out/break-out cables
- SLM software applications (Enterprise-SLM or Cable-SLM) allows testing in Numbering mode (8, 12 or others) or in Labelling mode and automates test workflow, certification and reporting
Applications
- Data Center single-mode structured cabling
- FTTH/Access Networks MPO trunks
- Wireless Fronthaul (FTTA/C-RAN) MPO fiber cables
Key Features

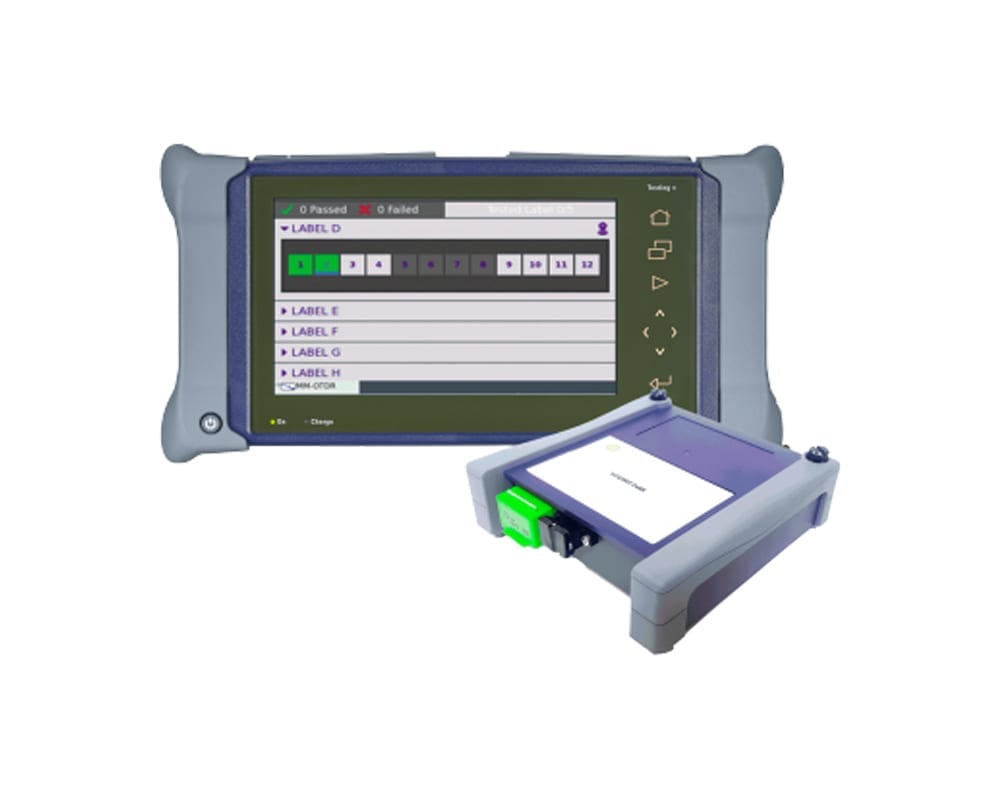

- Single-mode 1x 12 MPO Switch Module
- Pinned APC MPO port for connection to MPO links to be tested
- SC/APC port for connection to OTDR test port
- Automatically controlled by the OTDR
- Enterprise-SLM and Cable-SLM Ready
